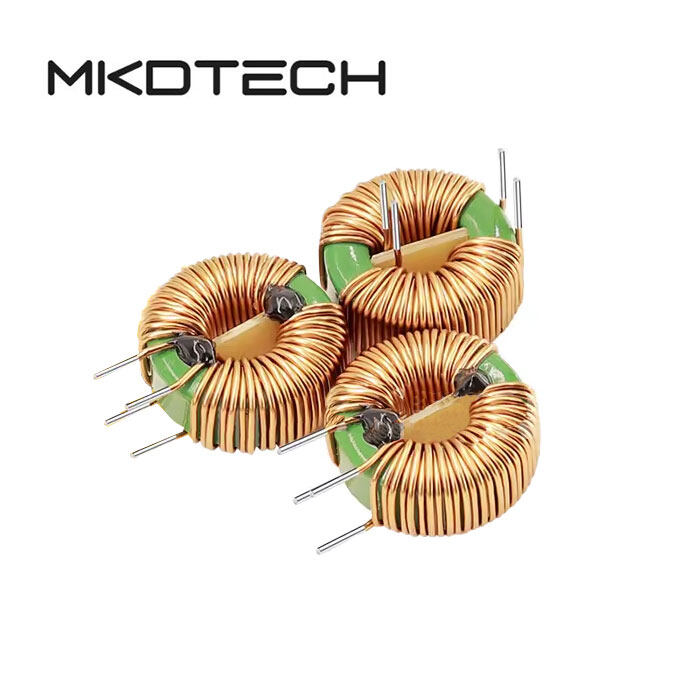

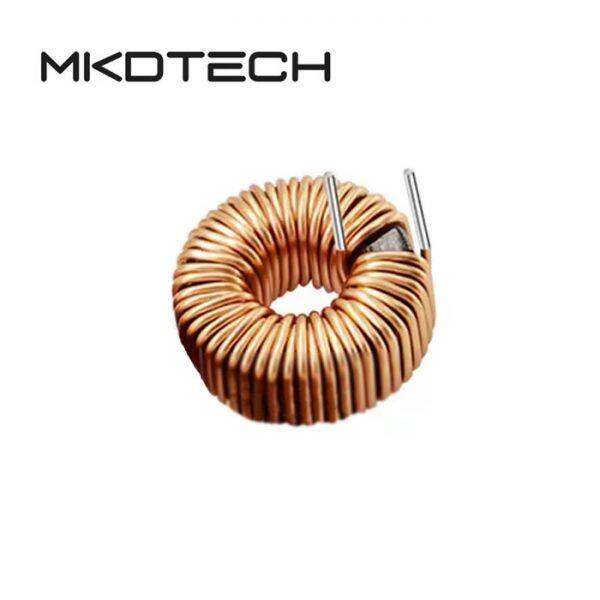

Common Mode Chokes 10mh 5a Power Inductor Common Mode Filters Toroidal Inductor

httpsossis.industrystock.cndefault2024f68ad645d535e0c82d016378ba76b32e

Common Mode Chokes 10mh 5a Power Inductor Common Mode Filters Toroidal Inductor

Categories Inductor, Toroidal Transformer

Details

Features:
High efficiency,Low impedance at operating
The interference frequency impedance is large
Small size
Low mechanical hum
Low magnetic noise
Low off-load losses
Easy to mount
Max Power :6.0KW
Stable inductance value，Good thermal stability
Custom designs available

Applications:
High end audio products
Medical equipments
UPS system
Industrial Machines
Computer and peripheral equipment

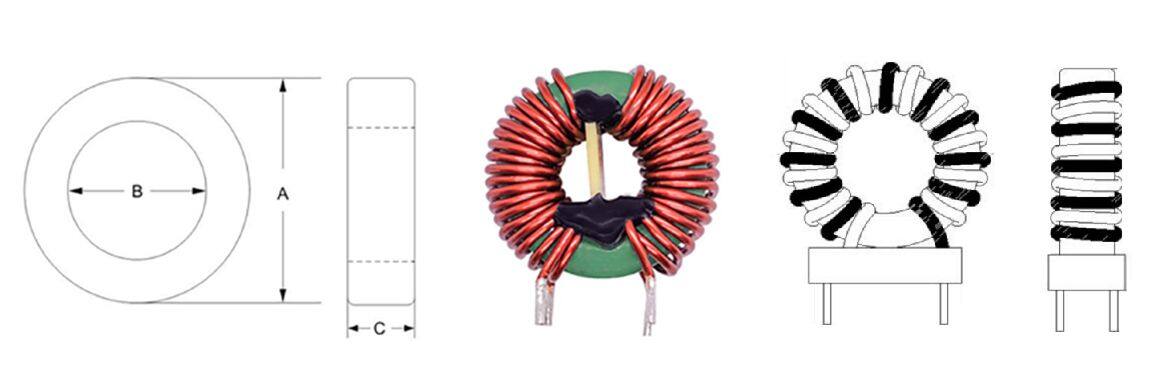

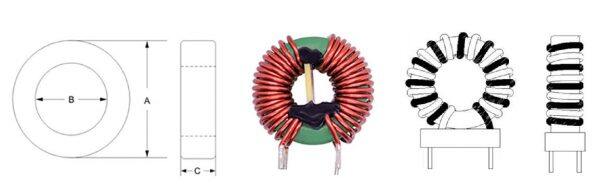

Model	Inductance (Ref. )	A	B	C	D	Working Frequency
T1065	0.8mH-3.1mH	14	9	16	6	10.0-100.0KHZ
T1264	1.5mH-4.0mH	16	8.5	18	6	10.0-100.0KHZ
T1495	1.5mH-4.5mH	18	10	20	8	10.0-100.0KHZ
T1695	1.8mH-5.0mH	20	10	22	8	10.0-100.0KHZ
T18108	2.5mH-6.0mH	23	13	25	12	10.0-100.0KHZ
T22148	3.5mH-12.0mH	26	13	28	12	10.0-100.0KHZ
T251510	5.0mH-20.0mH	30	15	32	13	10.0-100.0KHZ
T311913	3.0mH-25.0mH	36	18	38	16	10.0-100.0KHZ
T381913	3.0mH-25.0mH	44	18	46	16	10.0-100.0KHZ
T483015	10.0mH-30.0mH	54	20	56	18	10.0-100.0KHZ
T785016	10.0mH-50.0mH	88	25	90	18	10.0-100.0KHZ
T855525	10.0mH-50.0mH	96	40	96	30	10.0-100.0KHZ
T953	0.8mH-3.0mH	13	7	15	5	10.0-100.0KHZ
