Features
1. Small size
2. Large output current
3. Strong choke performance
4. Small distributed capacitance
Applications
Electronic ballast
Energy-saving lamps
Tape Recorder
Uninterruptible Power Supply
EMC
Filter
Home appliances

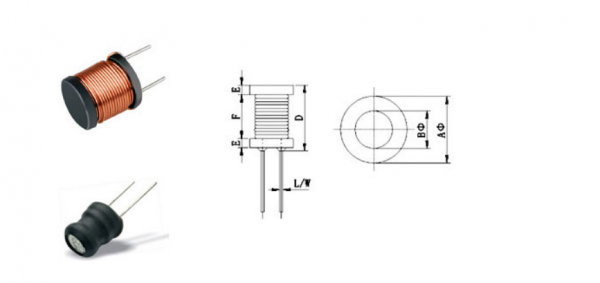

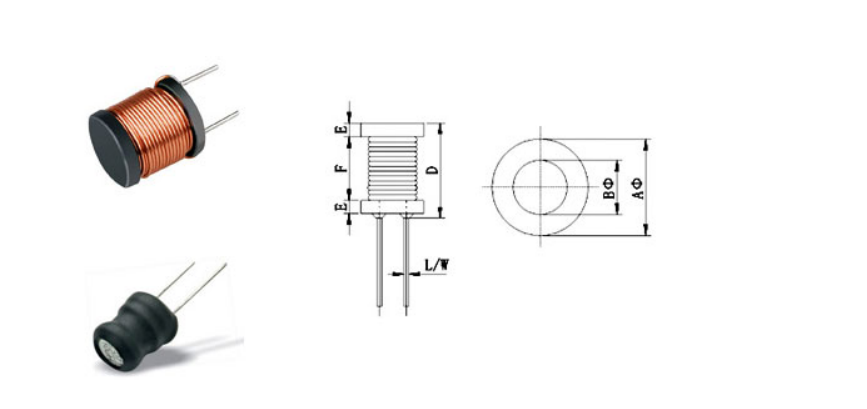

| MODLE | AΦ | BΦ | D | E | F | P（REF） |
| DR2W 3×4 | 3.5±0.15 | 1.5±0.15 | 4.0±0.3 | 1.25±0.15 | 1.5±0.15 | 1.45 |
| DR2W 4×5.5 | 4.0±0.15 | 2.0±0.15 | 5..5±0.3 | 1.6±0.15 | 2.3±0.15 | 1.75 |
| DR2W 4×5.5(S) | 4.5±0.15 | 2.0±0.15 | 5.5±0.3 | 1.6±0.15 | 2.3±0.15 | 1.75 |
| DR2W 5×7 P2.5 | 5.0±0.15 | 2.0±0.15 | 7.0±0.3 | 2.0±0.15 | 3.0±0.15 | 2.5 |
| DR2W 6×8.3(S) | 6.0±0.2 | 2.5±0.2 | 8.3±0.3 | 2.15±0.15 | 4.0±0.15 | 3 |
| DR2W 8×10 | 8.0±0.2 | 3.5±0.15 | 10.0±0.4 | 2.25±0.15 | 5.5±0.2 | 5 |
| DR2W 9×12 | 9.0±0.3 | 4.0±0.15 | 12.0±0.3 | 2.5±0.15 | 7.0±0.2 | 5 |
| DR2W 10×12 | 10.0±0.3 | 4.0±0.2 | 12.0±0.3 | 2.5±0.15 | 7.0±0.2 | 5 |
| DR2W 10×16 | 10.3±0.3 | 5.0±0.2 | 16.0±0.3 | 3.0±0.15 | 10.0±0.2 | 5 |
| DR2W 14×15 | 14.0±0.3 | 5.3±0.15 | 15.0±0.3 | 3.0±0.15 | 9.0±0.2 | 7.5 |
| DR2W 16×18 | 16.0±0.3 | 8.0±0.2 | 18.0±0.3 | 2.75±0.2 | 12.5±0.2 | 10 |
| DR2W 18×18 | 118.0±0.3 | 10.0±0.2 | 18.0±0.4 | 4.0±0.2 | 10.0±0.2 | 13 |
| DR2W 18×20 | 18.0±0.3 | 10.0±0.2 | 20.0±0.4 | 5.0±0.2 | 10.0±0.2 | 13 |
