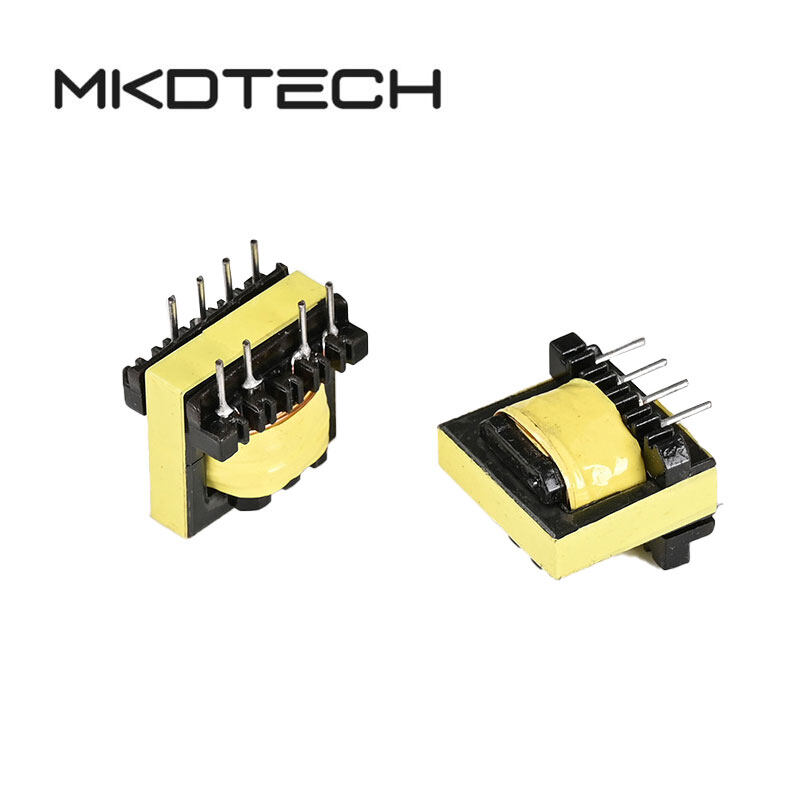

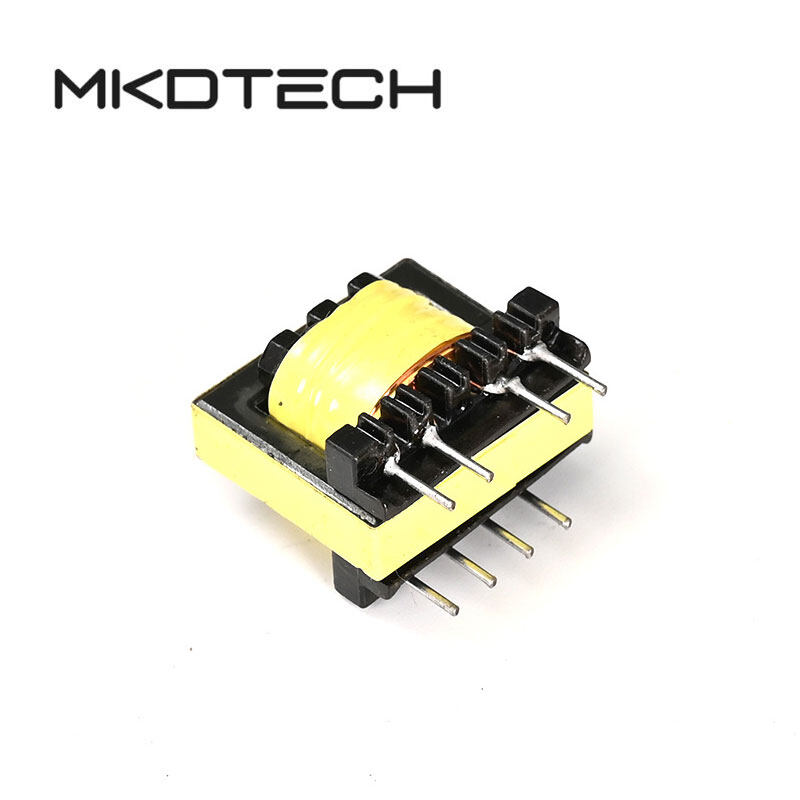

EE Series Small High Voltage High Frequency Welding Transformer

Category High-Frequency Transformers Inductor

Details

Features:
1. Low Magnetic Leakage
4. Low loss
5. Wide operating voltage range
5. High operating frequency:10KHz-500KHz
6. Insulationsystems:CLASS B(130℃)
7. Custom designs available

Application:
Fax machine
Switching Power Supply
Computer
Electronic ballast
Home appliances

MODEL	PIN CIRCUIT	A	B	C±0.5	D±0.5	E±0.5	F	TYPE
EE 8.3	6	8	6	4	2.5	8.3	V
EE 10	8	11.5	10.2	8	4	2.5	10.2	V
EE 13	10	12	12.5	8.5	4	2.5	13	V
EE 16	6	14.8	13.3	9	4	3	16	V
EE 16	10	15.4	13	10.5	4	3.2	17.1	V
EE 16	10	28.5	16	12.3	4	4.3	21.9	V
EE 19	8	17.6	16	10	4	5	19	V
EE 19	10	17.2	16.2	13	4	3.9	20	V
EE 19	10	31.5	16	10.5	4	21.1	V
EE 19	10	15.6	30	24.1	4	3.5	21	H
EE 25	6	20	18.2	12.5	4	6.3	25.2	V
EE 25	8	21.7	17.5	12.6	4	5	25.2	V
EE 25	10	22.2	25	15.4	4	5	26.1	H
EE 25	8	35.3	17.5	12.5	4	5	25.2	V
EE 30	10	21	29.2	25.2	4	5	30	H
EE 40	14	27.6	30.5	25.8	4	5	40	H
EE 42	12	33.8	44	35.5	4	5	42	H
EE 42	16	41.3	48	37.7	4	5	42	H
EE 42	18	48.7	32	27.5	4	5	45.1	V
EE 42	12	45	39.8	32.5	4	5	42	V
EE 42	16	44.2	50	37.8	4	5	42.2	H
EE 42	18	44.1	37	27.3	4	5	45.3	V
EE 55	20	50	45.5	4	5	55	H
EE 65	16	55.2	51.8	45	4	5	65	H
EE 70	18	59.5	56.8	50	4	5	70	H

Applications

Our advanced high quality pcba is widely used in Power Supply,LED Equipment, Telecom Product,Medical Equipment, Industrial Equipment,etc…
