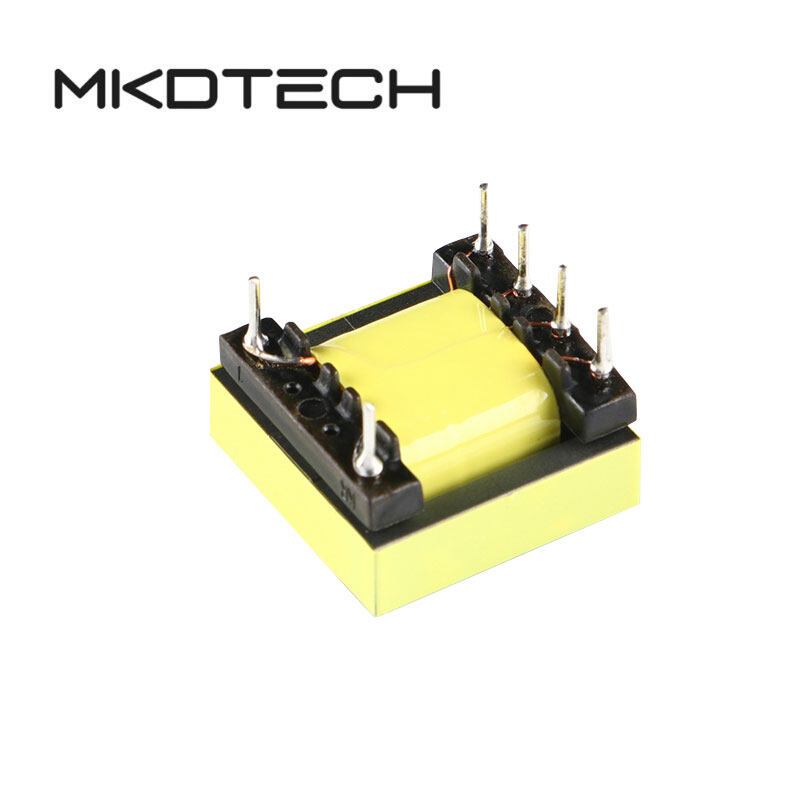

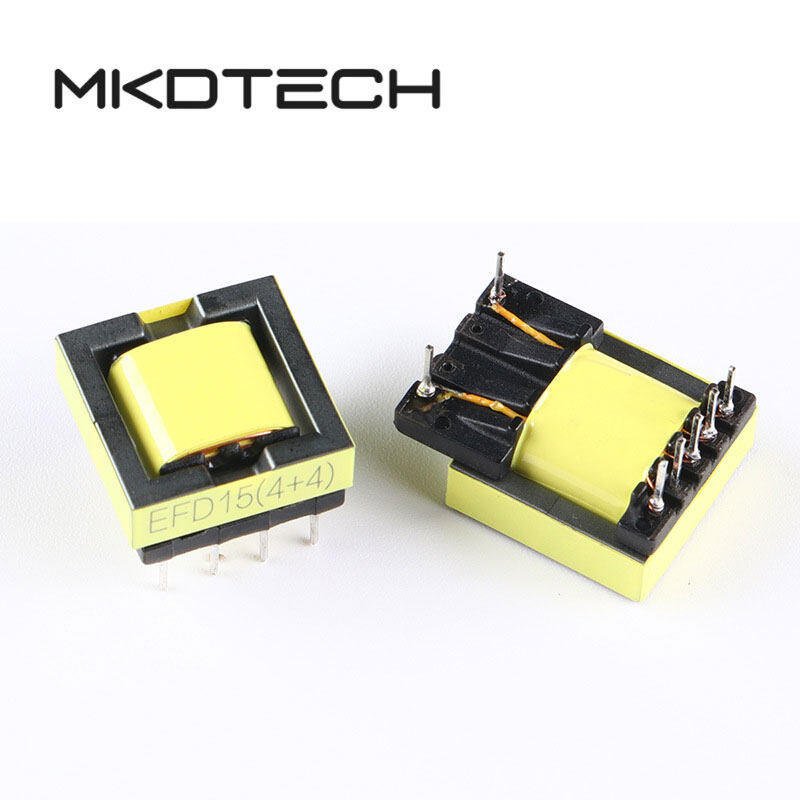

EFD Series High Frequency Electronic Transformer Switching Power Transformer

Category High-Frequency Transformers Inductor

Details

Features:
1. Wide operating frequency:10KHz~500KHz
2. Low magnetic leakage
3. Low loss
4. Strong anti-interference performance
5. Custom designs available

Application
Switching Power Supply
Fax machine
TV
Monitor

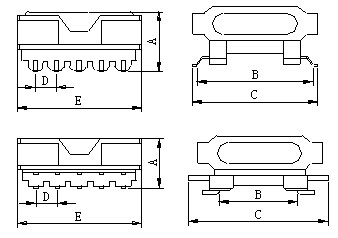

MODEL	PIN CIRCUIT	A	B	C±0.5	D±0.5	E	FIC	TYPE
EFD 12	8	6	17	20	3	13.5	2	H
EFD 15	10	7.3	18.2	21.35	2.5	15	1	H
EFD 15	10	7.5	19.3	22.6	3	6.7	2	H
EFD 20	10	9.4	25.3	27.7	3.75	21.7	2	H
EFD 20	12	9.7	24	26.8	3	20	1	H
EFD 25	10	13.4	29.7	35.4	5	25	2	H
EFD 25	10	12.6	29.7	31.5	5	25	1	H
EFD 30	12	12.6	31.6	35.3	5	30	2	H

Applications

Our advanced high quality pcba is widely used in Power Supply,LED Equipment, Telecom Product,Medical Equipment, Industrial Equipment,etc…
