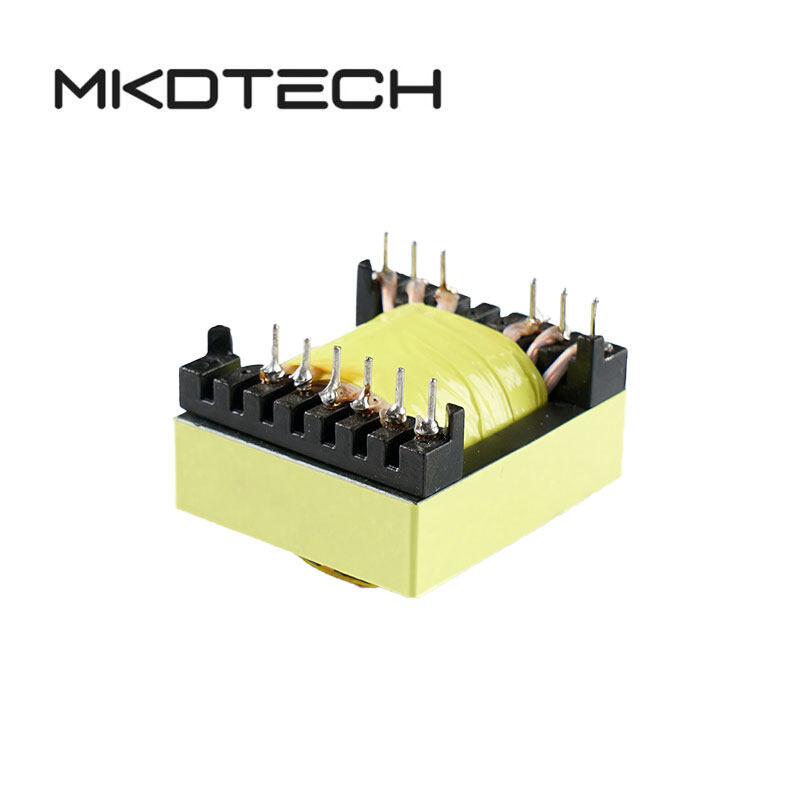

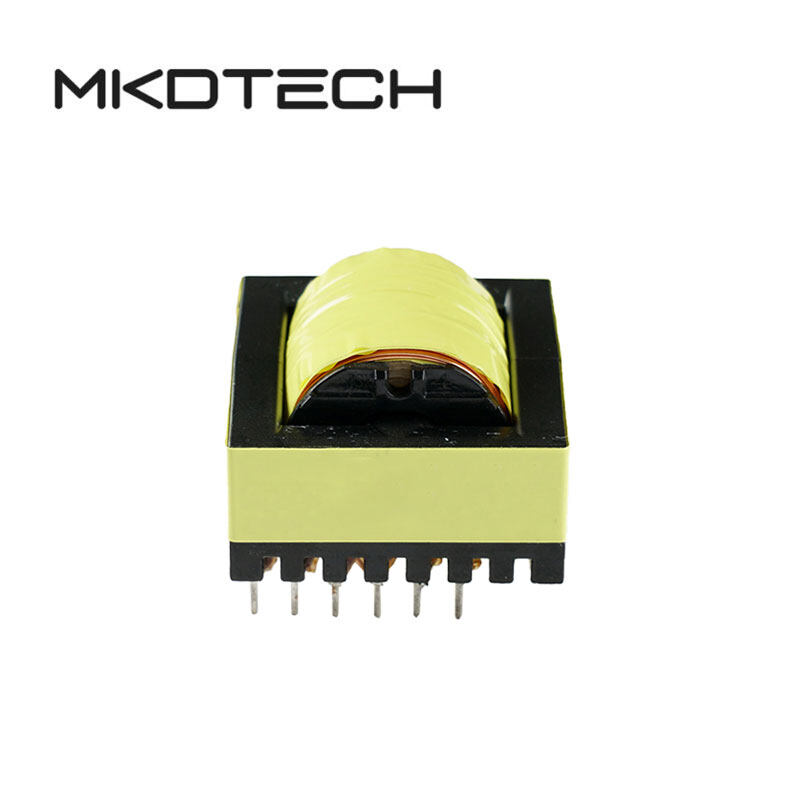

ER Series Ferrite Step Up Power Transformer For Audio Switching Power

Category High-Frequency Transformers Inductor

Details

Features:
1. Wide operating frequency:10KHz~500KHz
2. Low loss
3. High output power
4. Low temperature rise
5. Stable performance
6. Custom designs available

Application
TV power supply
Monitor
Switching Power Supply
Navigation

MODEL	PIN CIRCUIT	A	B	C±0.5	D±0.5	E	F	TYPE
ER 25.5	8	19.5	19.7	12.5	4	5	25.5	V
ER 28	12	30.5	23	17.5	4	5	31	V
ER 28	12	23.1	28.2	25	4	5	29.1	H
ER 28	12	36	27	20	4	5	30	V
ER 28	12	26.3	37.1	30	4	5	30.2	H
ER 35	14	43.5	28	22.5	4	5	35.5	V
ER 35	16	29.1	40.3	35.4	4	5	40.3	H
ER 39	16	46	31.1	25	4	5	43.1	V
ER 39	16	33	41.5	30.85	4	7.5	42.3	H
ER 40	16	48	31.1	25	4	5	43.1	V
ER 4215	14	45.5	30	25	5	42	V
ER 4220	14	44	37.5	36	5	42	V

Applications

Our advanced high quality pcba is widely used in Power Supply,LED Equipment, Telecom Product,Medical Equipment, Industrial Equipment,etc…
