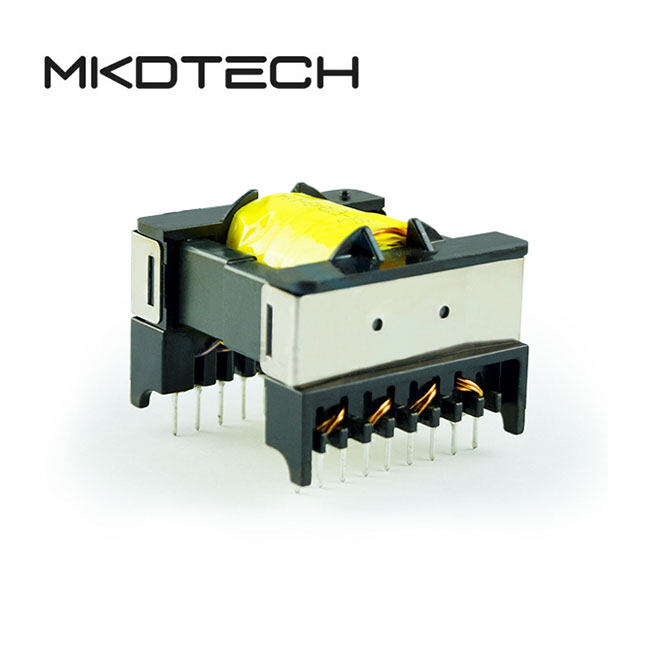

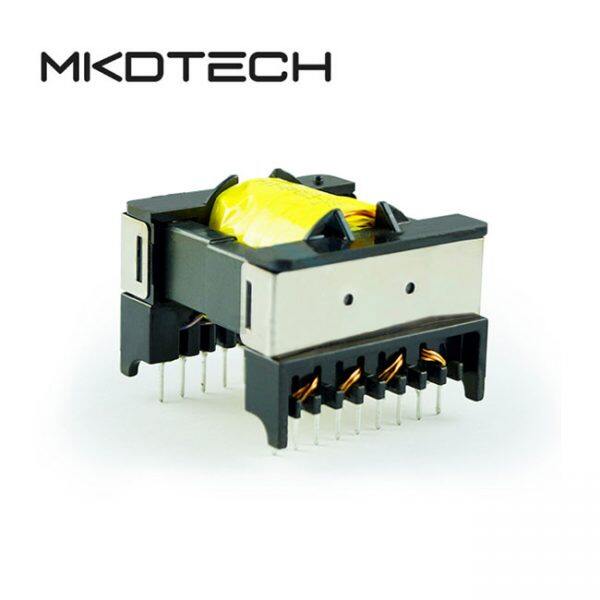

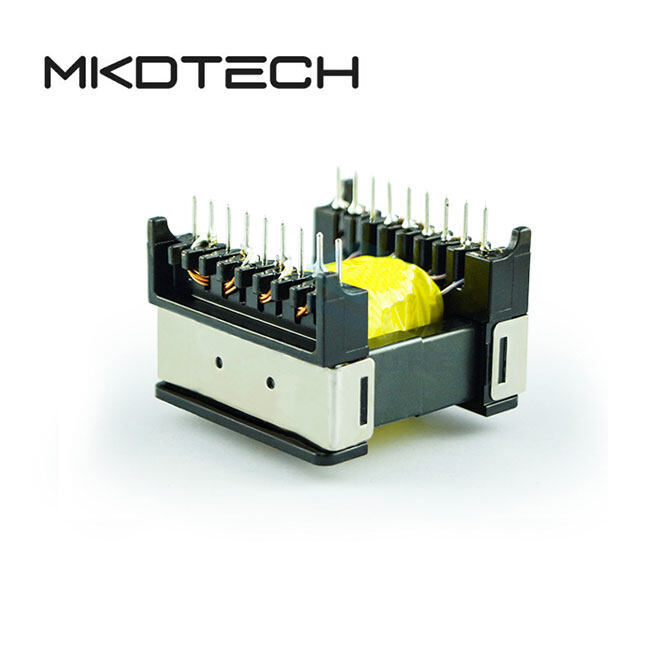

Ferrite Core ETD Series Pure Copper Wire High Power High-frequency Transformer

httpsossis.industrystock.cndefault2024c4f9413ec16dd5b9d29bf67e59422bde

Ferrite Core ETD Series Pure Copper Wire High Power High-frequency Transformer

Category High-Frequency Transformers Inductor

Details

Features:
1. Power: 20W-1000W
2. Low loss
3. High output power
4. Wide operating frequency:20-500KHz
5. Low temperature rise
6. Stable performance
7. Custom designs available

Application
TV power supply
Switching Power Supply
Monitor
Electronic ballast
Navigation

MODEL	PIN CIRCUIT	A	B	C±0.5	D±0.5	E	F	TYPE
ETD 24	12	35.6	21	17.8	4	5.08	36.1	V
ETD 29	12	40.9	24	20.3	4	5.08	41.8	V
ETD 29	14	24.9	35.1	25.5	4	5	35.7	H
ETD 34	16	39.9	31.7	25.5	4	5	42	V
ETD 34	14	29.8	40	25.5	4	5	39.9	H
ETD 39	14	35.6	44.2	30.7	4	5	44.6	H
ETD 44	18	42	32	27.5	4	5	45	V
ETD 44	18	39.6	51.3	35.7	4	5	49.8	H
ETD 49	22	57.5	36	27.5	5	53.7	V
ETD 49	20	41.4	57.2	40.7	5	54.7	H

Applications

Our advanced high quality pcba is widely used in Power Supply,LED Equipment, Telecom Product,Medical Equipment, Industrial Equipment,etc…
