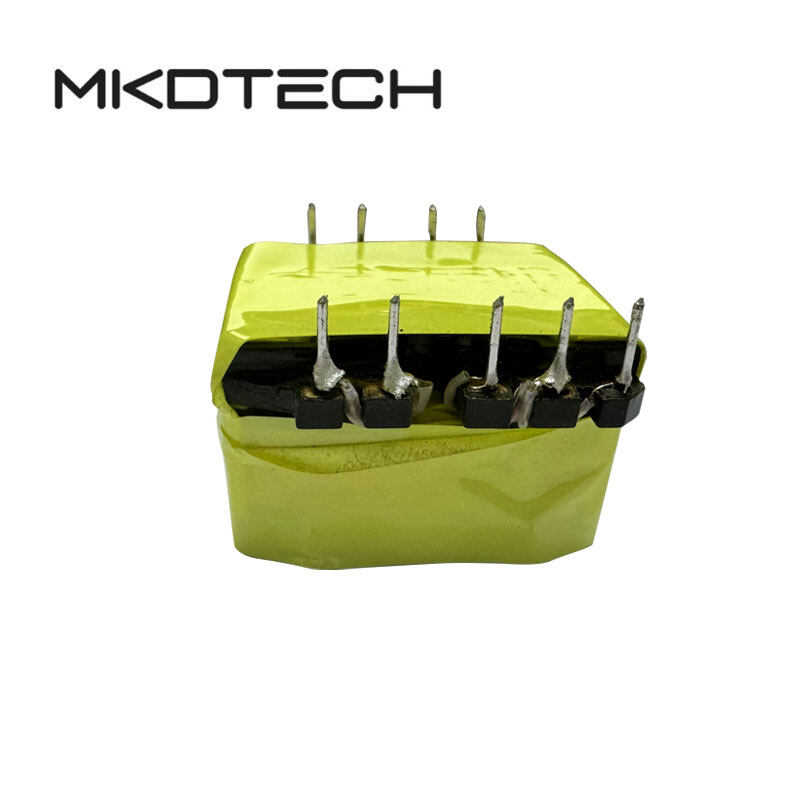

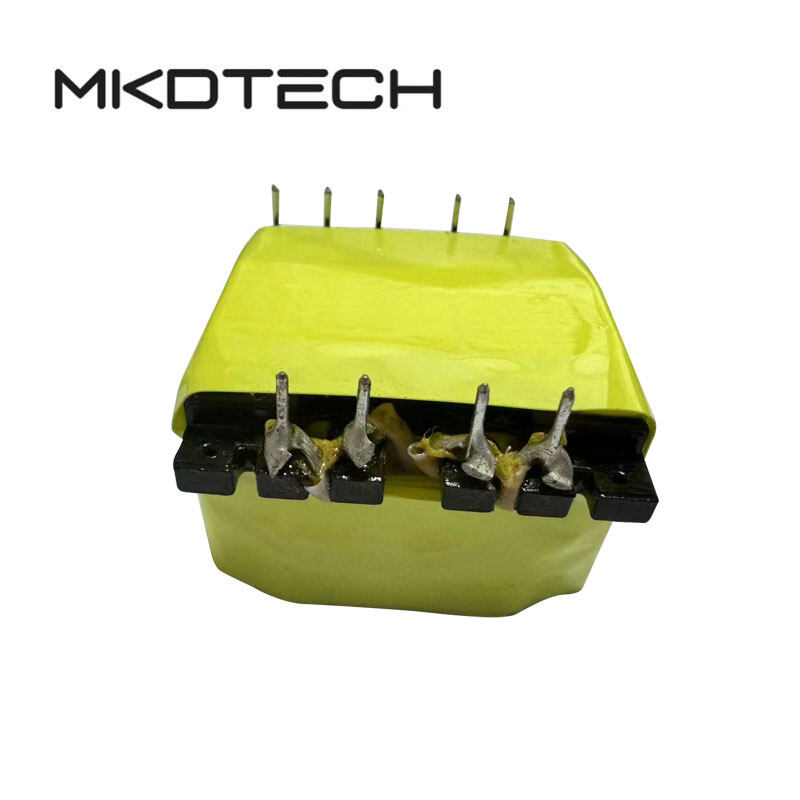

PQ Series 220V 12V Flyback Toroidal High Frequency Transformer For Switching Power Supply

Category High-Frequency Transformers Inductor

Details

Features:
1. Wide operating frequency:10KHz~500KHz
2. Power: 20W-1000W
3 Low magnetic leakage
4 Low loss
6.Strong anti-interference performance
7.Custom designs available

Application
Mobile chargers
Switching Power Supply
Fax machine
TV
Lighting equipment

MODEL	PIN CIRCUIT	A	B	C1	D±0.5	E1	E2	F	TYPE
PQ 2016	14	18.5	23.2	20.6	4	5	3.8	23.1	V
PQ 2020	14	22.3	23	20.3	4	5	3.8	23	V
PQ 2620	12	20	29.3	25.4	4	7.7	3.8	26.6	V
PQ 2625	12	28.5	29.6	25.5	4	7.62	3.8	27	V
PQ 3220	12	23.5	34.4	30.7	4	7.62	5.08	32.4	V
PQ 3225	12	23.5	34.4	30.7	4	7.62	5.08	32.4	V
PQ 3230	12	33.5	34.2	30.7	4	7.52	5.08	32.3	V
PQ 4040	12	41.5	42	38	5	15	5	40	V
PQ 5050	12	48.5	49.4	45.4	5	12.5	7.5	50	V

Applications

Our advanced high quality pcba is widely used in Power Supply,LED Equipment, Telecom Product,Medical Equipment, Industrial Equipment,etc…
