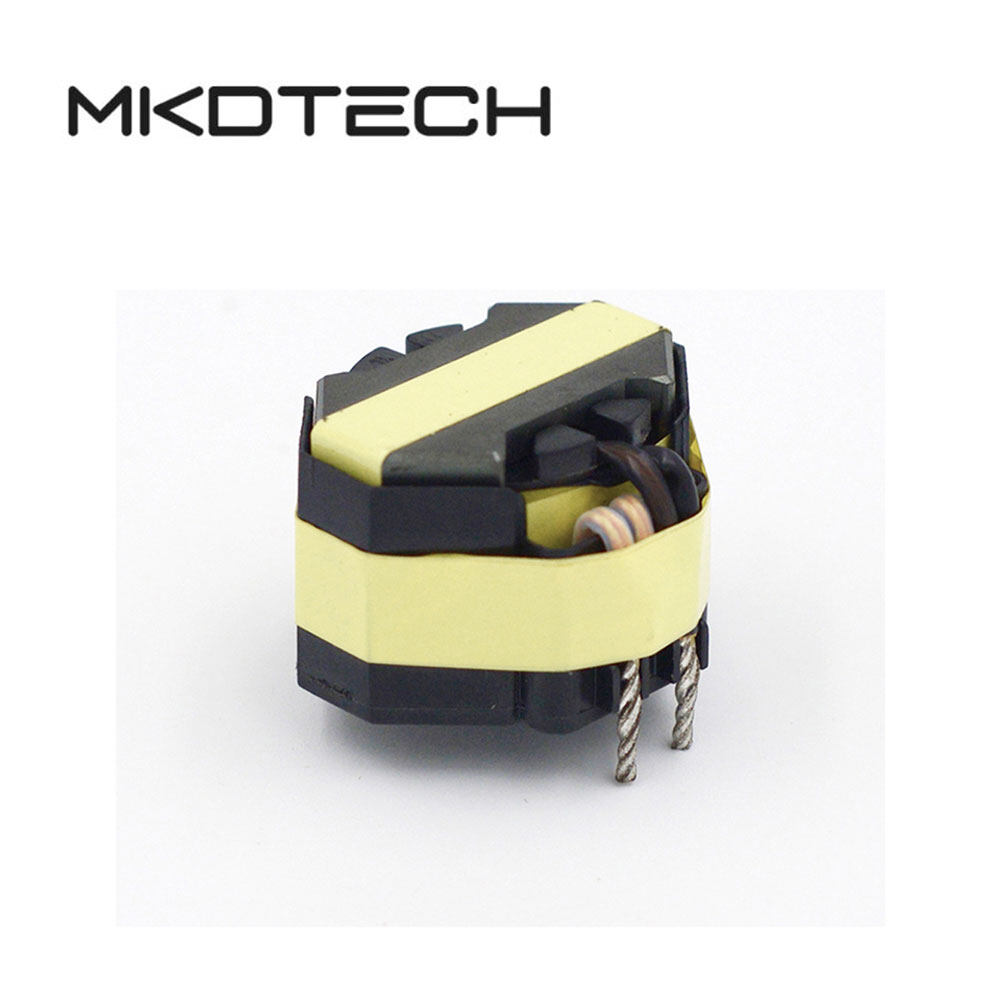

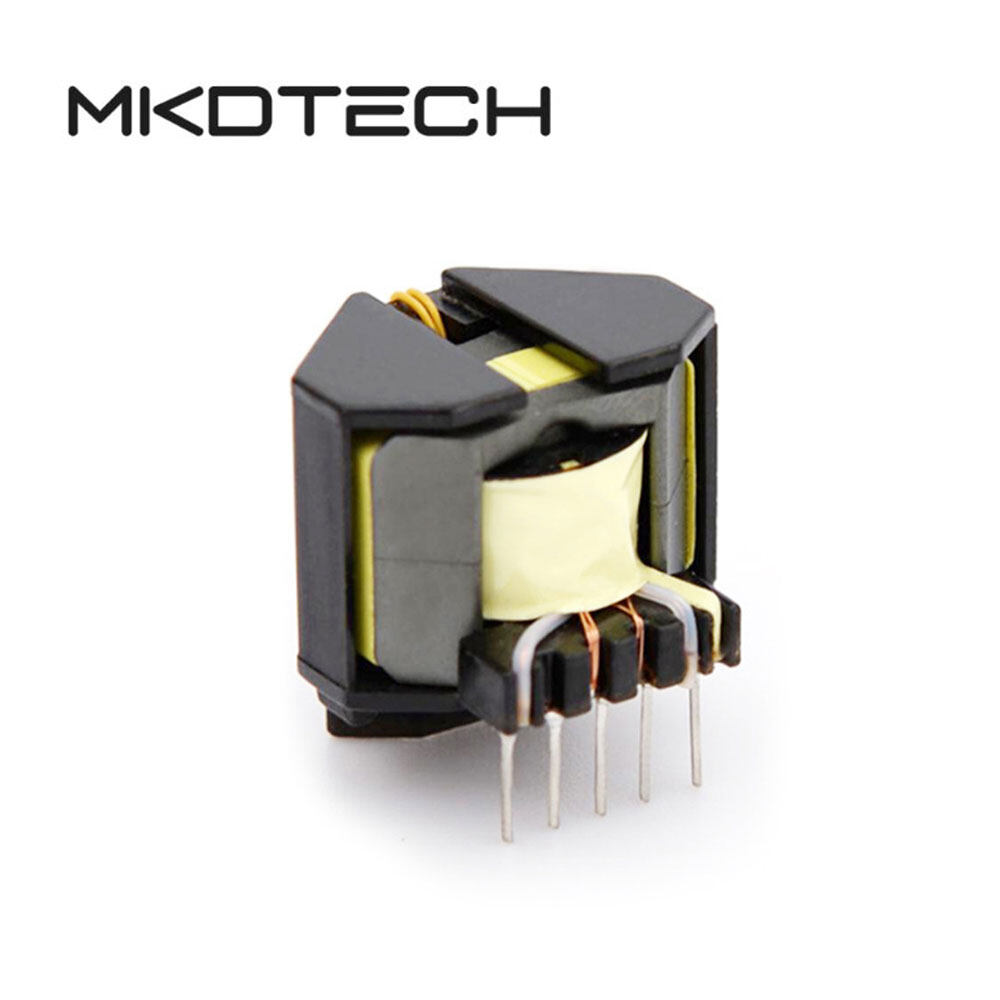

Features:
1. Wide operating frequency:10KHz~500KHz
2. Power: 20W-1000W
3. Low magnetic leakage
4. Low loss
5. Strong anti-interference performance
6. Custom designs available
Application:
Mobile chargers
Switching Power Supply
Fax machine
TV
Lighting equipment
| MODEL | PIN CIRCUIT | A | B | C1 | C2 | D±0.5 | E1 | E2 | E3 | F | FIG |
| RM 4 | 6 | 7.8 | 13.5 | 1.8 | 3.6 | 4.2 | 7.2 | 10.8 | / | 12.6 | 1 |
| RM 5 | 6 | 7.2 | 15.5 | 1.8 | 3.6 | 4.4 | 10.8 | 14.4 | / | 16 | 1 |
| RM 6 | 6 | 13.5 | 18.5 | 1.8 | 3.6 | 4.7 | 14.4 | 18 | / | 20.7 | 1 |
| RM 6 | 8 | 12.8 | 18.5 | 15.2 | / | 4.2 | 3.8 | 5.08 | / | 18.5 | 2 |
| RM 8 | 12 | 12.1 | 23.5 | 3.6 | 7.2 | 5 | 14.4 | 18 | 21.6 | 24 | 1 |
| RM 8 | 12 | 17.5 | 29.8 | 20.3 | / | 4.4 | 3.8 | 5.08 | / | 23.4 | 2 |
| RM 10 | 12 | 13.4 | 28.5 | 3.6 | 7.2 | 4 | 18 | 21.6 | 25.2 | 28.1 | 1 |
| RM 10 | 12 | 19.6 | 39.4 | 28 | / | 4.5 | 3.8 | 5.12 | / | 23.3 | 2 |
| RM 12 | 12 | 17.7 | 38.5 | 3.6 | 10.8 | 6.3 | 21.5 | 28.7 | 35.9 | 38.5 | 1 |
| RM 12 | 12 | 23.7 | 45.2 | 33 | / | 4.5 | 5.08 | 5.1 | / | 28.4 | 2 |
| RM 14 | 12 | 29 | 48.4 | 35.6 | / | 4.8 | 5.08 | 7.62 | / | 31.4 | 2 |
