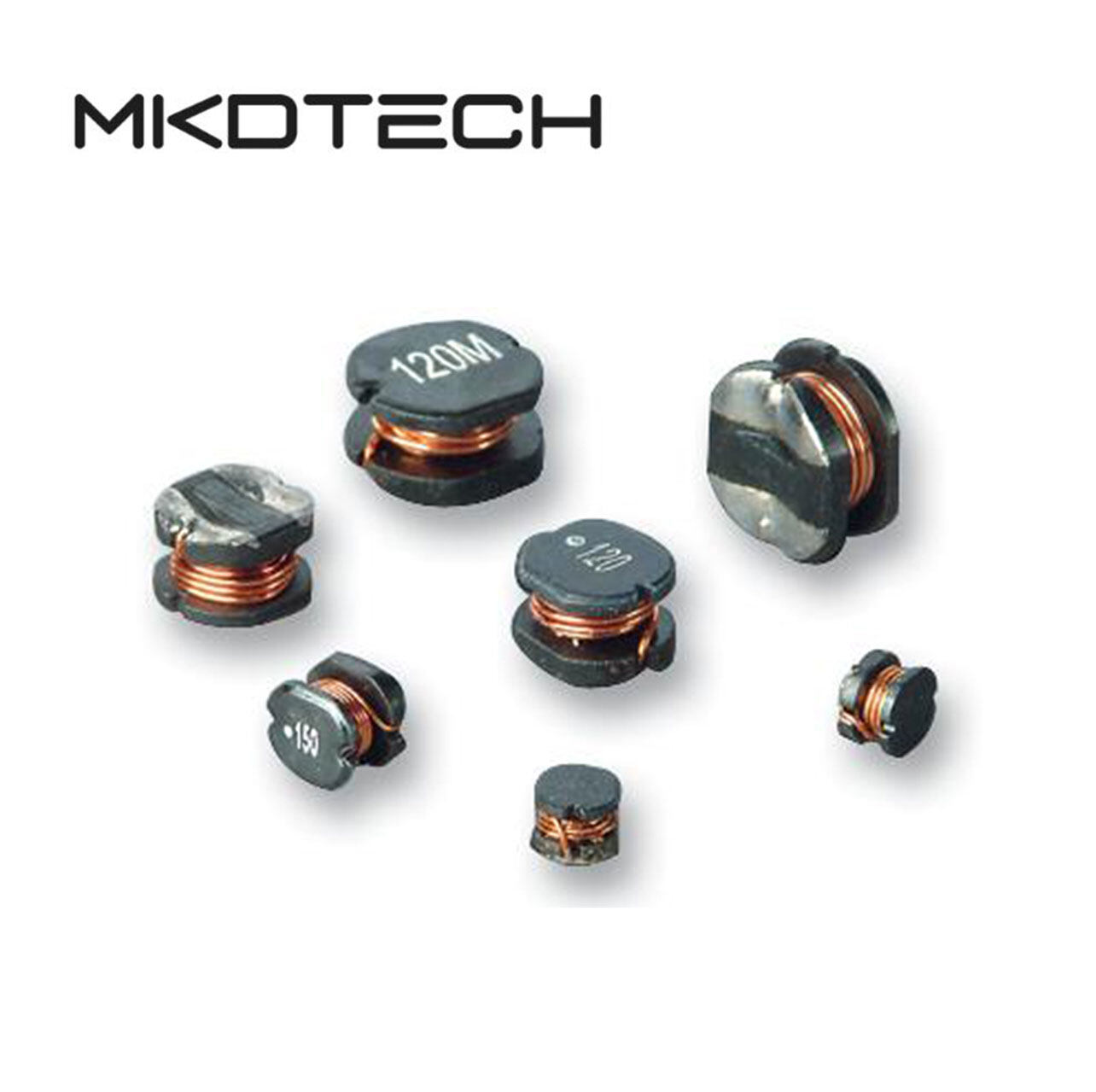

SMD Unshielded Inductor Series High Voltage inductor 10uh inductor

Details

Features:
Excellent mechanical strength and heat resistance
Inductance: 0.33uH to 47mH
Maximum operating current up to 30A
Miniaturisation, high energy storage, low resistance value
Custom designs available

Applications:
Car audio
Satellite receivers
LCD TV
Mobile phones
Pagers
DC/DC converters
Notebook computers

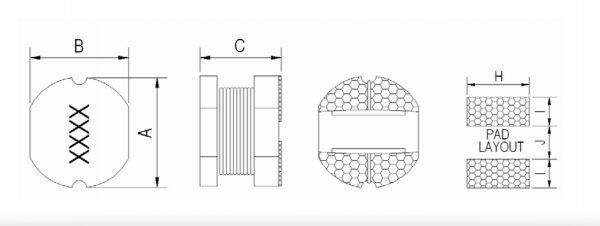

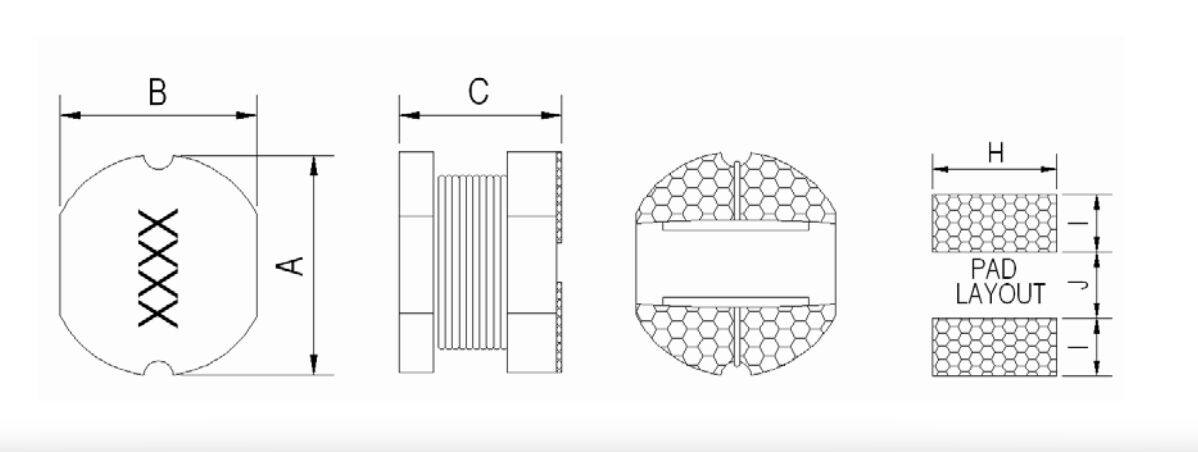

Part No	A	B	C	H	I	J
3511	3.5±0.3	3.0±0.3	1.1±0.2	3.5	1.6	0.8
3516	3.5±0.3	3.0±0.3	1.6±0.2	3.5	1.6	0.8
3521	3.5±0.3	3.0±0.3	2.1±0.3	3.5	1.6	0.8
4532	4.5±0.3	4.0±0.3	3.2±0.3	4.5	1.75	1.5
5825	5.8±0.3	5.2±0.3	2.5±0.3	5.5	2.15	1.7
5835	5.8±0.3	5.2±0.3	3.5±0.3	5.5	2.15	2.7
5845	5.8±0.3	5.2±0.3	4.5±0.35	5.5	2.15	3.7
7835	7.8±0.3	7.0±0.3	3.5±0.5	7.5	3	2
7850	7.8±0.3	7.0±0.3	5.0±0.5	7.5	3	2
1040	10.0±0.3	9.0±0.3	4.0±0.5	9.5	3.75	2.5
1054	10.0±0.3	9.0±0.3	5.4±0.5	9.5	3.75	2.5
