SQ series Common Mode Choke Low Leakage Flux Power Inductor Coil Inductors

httpsossis.industrystock.cndefault202447176971186184320e7479e859e6351f

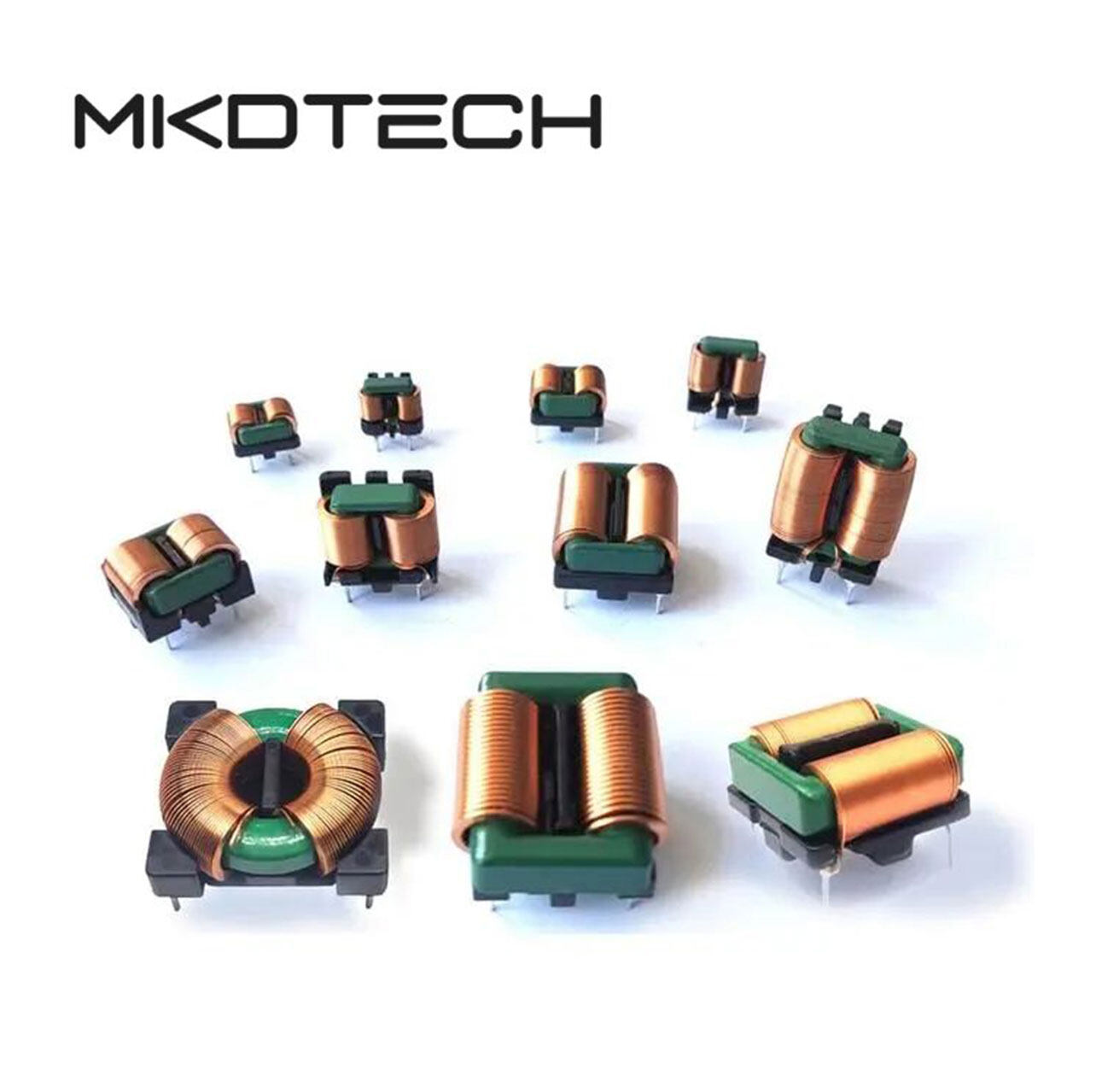

SQ series Common Mode Choke Low Leakage Flux Power Inductor Coil Inductors

Details

Features:
Working Frequency:20KHz~500KHz
Working Temperature: -20℃~120℃
High power density and high efficiency
Multiple-output is available
Custom designs available

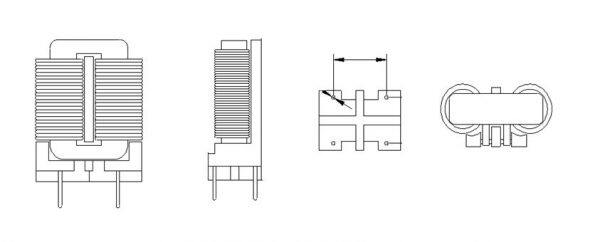

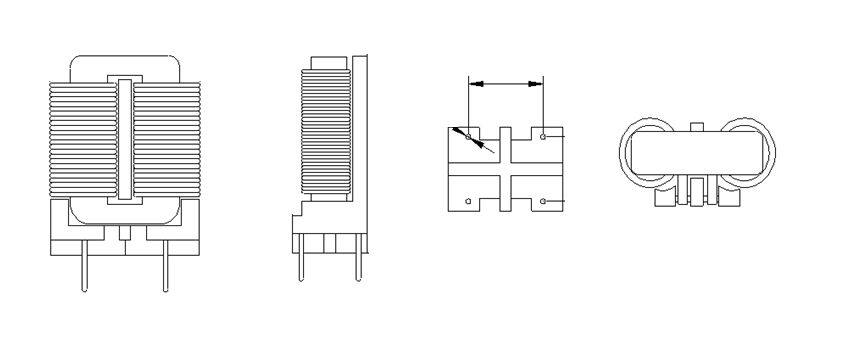

Spec.	Wire/Turns	Inductance mH MIN (1KHZ/0.25V)	DCR (mΩ)MAX	Current (A)MAX	Dimension (mm MAX)
SQ1010	0.10.739TS	10mH	160	0.7	Ver.:5.8*7 L: 14.5 W: 8.50 H: 13.5
SQ1012	0.10.750	12mH	260	0.7	Ver.:5.8*7 L: 14.5 W: 8.50 H: 15.5
SQ1218	0.11.087TS	50mH	360	1	Ver.:8*10 L:18.0 W:11.5 H:21.5
SQ1212	0.131.045TS	15mH	170	1.3	Hor.:10*13 L:17.0 W:14.5 H:12.0
SQ1212	0.21.038TS	8mH	100	2	Ver.:6*8 L:18.0 W:10.5 H:17.5
SQ1314	0.131.044TS	10.0mH	180	1.3	Ver.5*7 L:19.0 W:11.5 H:19.0
SQ1314	0.21.031TS	6.0mH	140	2	Ver.5*7 L:19.0
SQ1515	0.11.066TS	30.0mH	340	1	Hor. : 13.5*13.5 L:21.0 W:17.0 H:13.0
SQ1515	0.251.532TS	10.0mH	60	3.6	Hor.:13*17 L:22.0 W:17.5 H:15.0
SQ1918	0.131.066TS	25.0mH	280	1.3	Ver.:10*13 L:24.0 W:14.5 H:25.0
SQ1918	0.41.534TS	5.0mH	60	6	Ver.:10*13 L:24.0 W:14.5 H:25.0
SQ2418	0.251.061TS	25.0mH	160	2.5	Ver.:10*13 L:23.0 W:15.0 H:31.0
SQ2418	0.21.570TS	20.0mH	145	3	Hor.:17*21.5 L:24.0 W:26.5 H:15.5
SQ2418	0.251.560TS	15.0mH	120	3.75	Hor.:17*21.5 L:24.0 W:26.5 H:15.5
SQ2418	0.31.549TS	10.0mH	90	4.5	Ver.:10*13 L:24.0 W:15.0 H:31.0
SQ2820	0.31.560TS	12mH	90	4.5	Hor.:20*25 L:26.0 W:30.5 H:16.5
SQ2918	0.351.553TS	9.0mH	80	5.25	Ver.:10*13 L:25.5 W:15.0 H:35.5
SQ2918	0.41.547TS	8.0mH	60	6	Ver.:10*13 L:25.5 W:15.0 H:35.5
SQ3126	0.61.032TS	4.0mH	45	6	Ver.:16*18 L:31.0 W:23.5 H:43.0
SQ3324	0.61.832TS	6.0mH	50	10.8	Ver.:16*18 L:31.0 W:23.5 H:43.0
SQ3324	0.81.824TS	1.8mH	30	14.4	Ver.:16*18 L:31.0 W:23.5 H:43.0
